Rangitoto

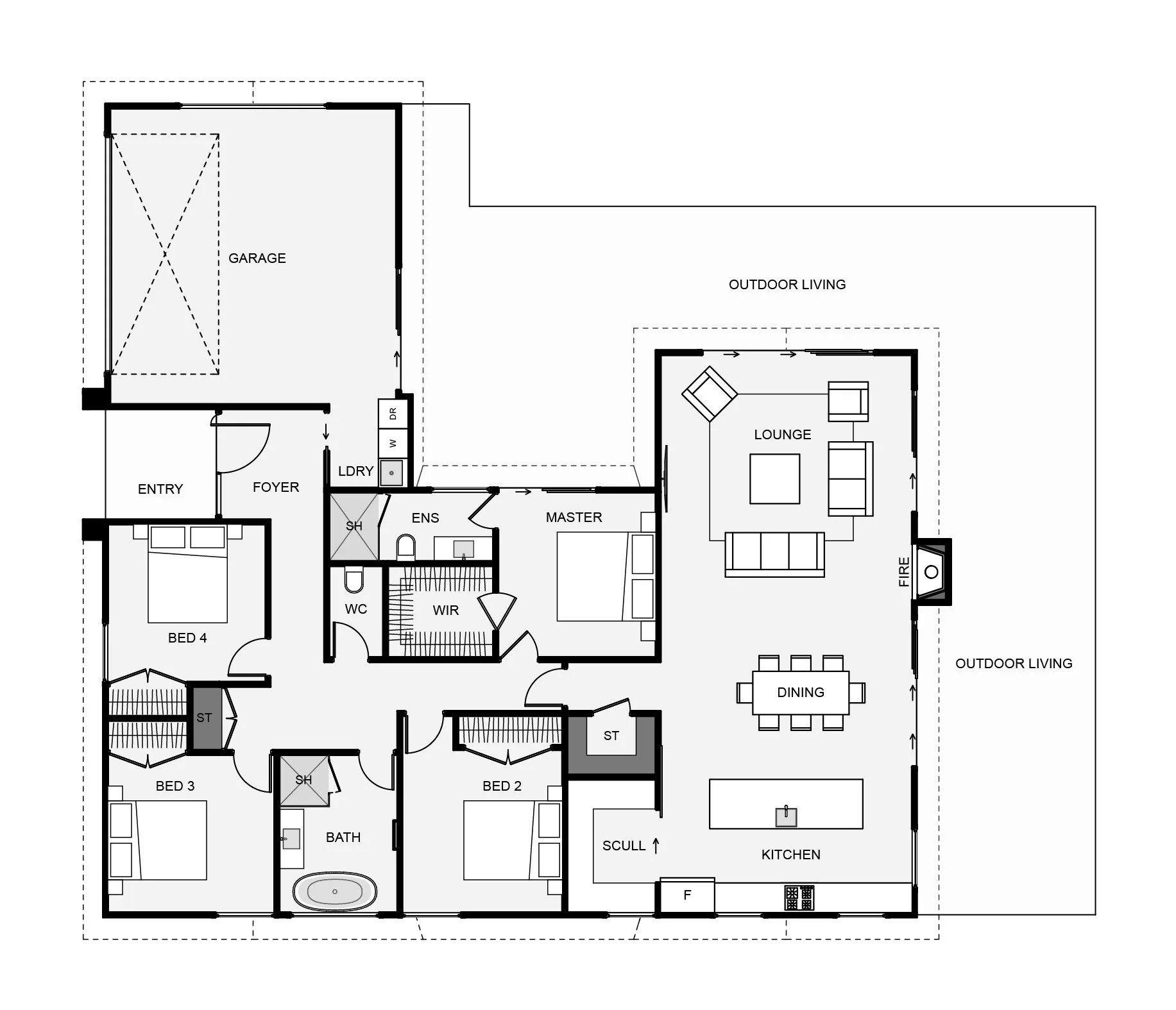

ARCHITECTURAL PLAN

  4    2.5     1     2     201 sqm     17.6 x 16.5 m

 Download Plans

Base price: POA

Learn More

While this design derives from a basic rectangle shape, it's cleverly refined into a timeless architectural home. This is achieved by using an extruding band around the exterior, symmetry and some nice interior features. Together, this enhances the visual appeal and practical flow of the home. Some features of this home include the north-facing upstairs study, a chill zone, an atrium and the optional covered outdoor living space. If you like simplicity or symmetry, this is your home!

← View previous | View next →



Plan can be mirrored



Base price: POA

For a finished home from the foundations up in our standard specifications, including:

  • Council fees (PC sum $5,000)

  • Services and drainage laid from boundary (allowance 15m)

  • Rib-Raft 300mm waffle slab foundation based on 3604 ground

  • All NZ timber framing

  • Colorsteel Endura Roofing

  • Cladding selection from our standard selections

  • Double glazed thermally broken windows

  • Earthwool insulated with GIB interior linings

  • Level 4 plastering and painting

  • Bathrooms, kitchen and appliances

  • Selected flooring from our standard flooring range

  • Everything in our Standard Specifications (excluding upgrades)

Base price excludes:

  • Specification upgrades

  • Resource consents or any surveying consultants if required

  • Earthworks & retaining walls

  • Drainage & services (including sewer, detention and water tanks if required)

  • Structural Engineering and site-specific foundations

  • SED wind zones and/or coastal areas

  • Landscaping
